The Comprehensive High-Output Robotic Universal-NDT System (CHORUS) is designed for inspecting large and small composite parts, forgings, and other metallic and non-metallic components. CHORUS is optimized for Ultrasonic Testing techniques (PE, TTU, PAUT, EMAT) and most other NDT techniques, including Eddy Current, Radiography, Thermography, and Shearography.

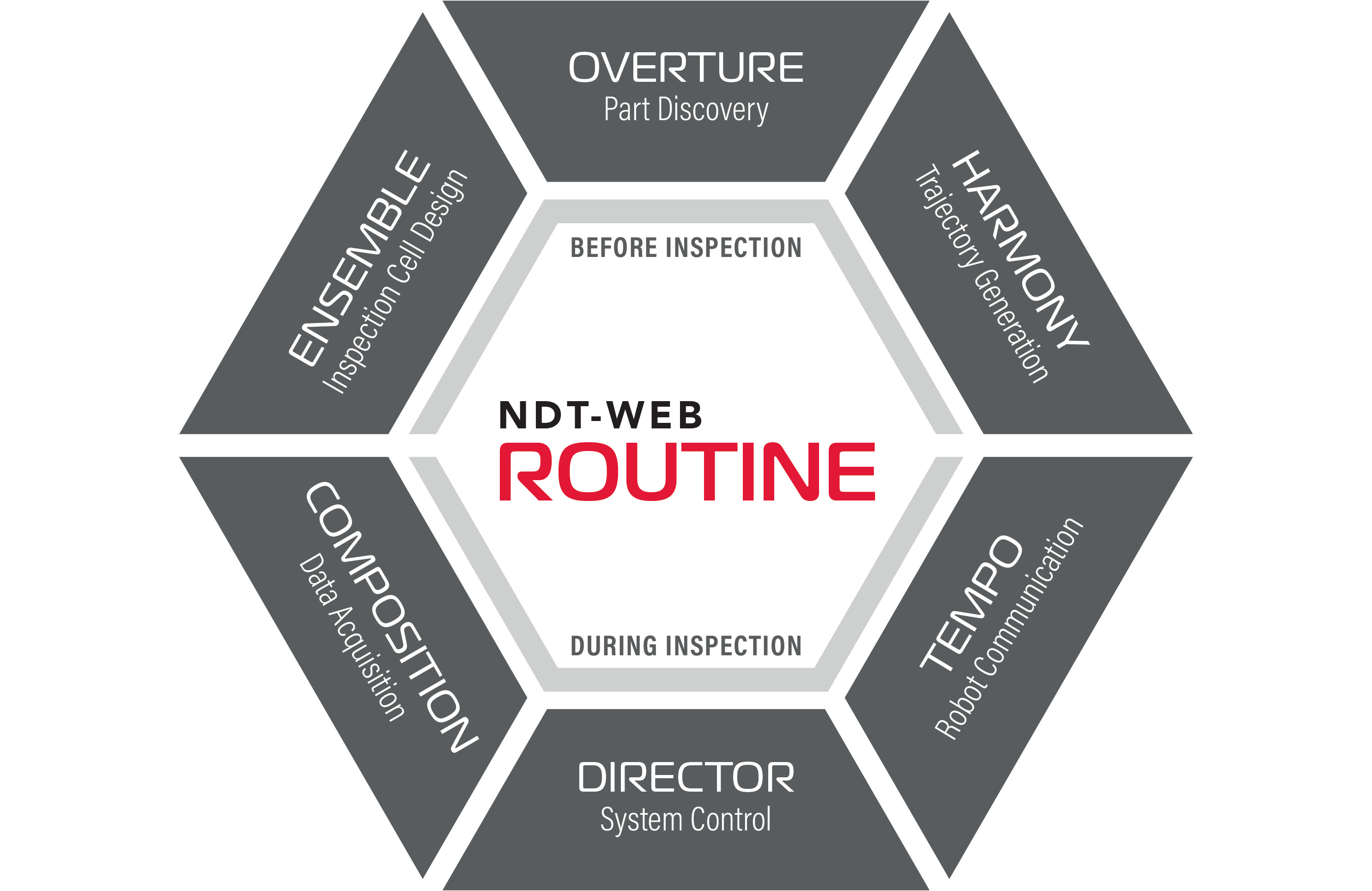

NDT-WEB ROUTINE

CHORUS robotic systems include Innerspec’s NDT-WEB ROUTINE (Robot UT Integration Environment), a suite of web-based and seamlessly integrated sub-programs covering all the Offline and Online processes required to manage the inspection.

  • No robot programming required.
  • Automated part teaching and adaptive robot path control based on inspection results.

A FLEXIBLE PLATFORM DESIGNED TO EVOLVE

NO MORE NDT MONUMENTS

CHORUS – Large Component Cells

Designed for inspection of large, complex, high-value structures. The robotic cell designs are tailored to match the scale and complexity of the product inspected.

Key Characteristics:

  • Single or multi-robotic scanning of large or fixed components. Typical constructions include:
    • Single Robot (6-axis). Water-column UT/PAUT, Immersion Tank, and TTU with a yoke.
    • Dual or Triple Robot (6-axix * 2). Water-column UT/PAUT, Immersion Tank, dual robot TTU. Inspecting on shared or separate areas simultaneously.
  • Multi-axis motion for complex geometries and hard-to-reach areas.

Best For:

  • Aerospace structures.
  • Large forgings and weldments

Applications:

Aerospace Structures | Large Forgings and Weldments

CHORUS – Small Component Cells

These systems combine robotic inspection with automated part handling, creating a fully self-contained inspection solution for smaller components.

Key Characteristics:

  • Robot performs both part manipulation and inspection.
  • Compact footprint for manufacturing environments.
  • Automated loading, positioning, and scanning.
  • High repeatability for batch production.

Best For:

  • Precision-machined parts.
  • Automotive or aerospace components.
  • Medium-to-high volume production.

Precision-Machined Parts | Automotive or Aerospace Components
Medium-to-High Volume Production

CHORUS - Inline Systems

Built to follow the production flow, they inspect parts as they move through a production line.

Key Characteristics:

  • Conveyor-based or inline integration.
  • High-speed inspection synchronized with production.
  • Scalable for high-volume environments.
  • COBOT options for operation with line operators.

Best For:

  • Continuous manufacturing lines.
  • Quality control checkpoints.

Applications:

Continuous Manufacturing Lines | Quality Control Checkpoints

Vídeos
Brochures
Casos prácticos
Articles/News
Título
Publicación
Año

In-Motion Railcar Wheel Inspection Using Magnetostrictive Emats

Materials Evaluation

2024

VER

Limitations of the Cutoff Frequency Technique for Sizing Defects and a Potential Path Forward

ASNT

2023

VER

Nuevas soluciones EMAT para la industria ferroviaria

ECNDT 2018

2018

VER

Corrosion Detection Under Pipe Supports Using EMAT Medium-Range Guided Waves

WCNDT 2016

2016

VER

Inspección bajo soportes con Ondas Guiadas Transversales Horizontales generadas por EMAT

CNEND

2015

VER

In-Service Inspections Using EMAT and MRUT

Inspectioneering Journal

2015

VER

Inspección bajo soportes mediante Ondas Guiadas generadas por EMAT

AEND

2015

VER
AUTOMATED ULTRASONIC INSPECTION OF THERMOPLASTIC COMPOSITE CLIPS WITH INNERSPEC’S CHORUS
Innerspec successfully deployed an automated ultrasonic inspection cell for thermoplastic composite clips at an Aircraft manufacturing facility in the United States.
VER

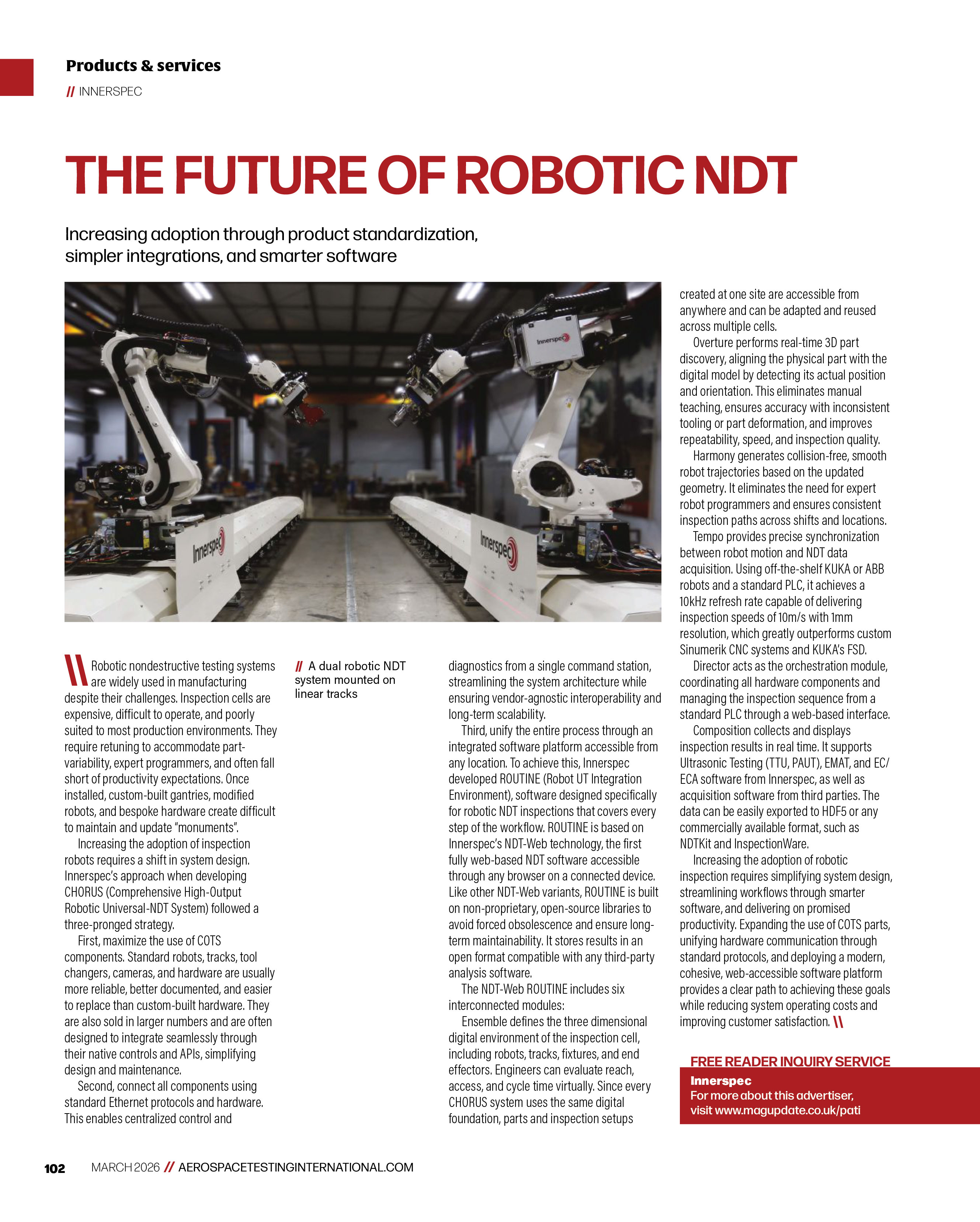

CHORUS No More NDT Monuments – Aerospace Testing International Feature
